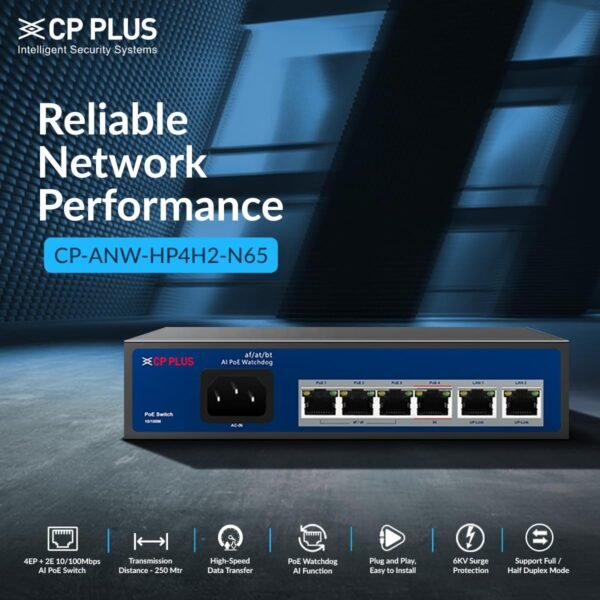

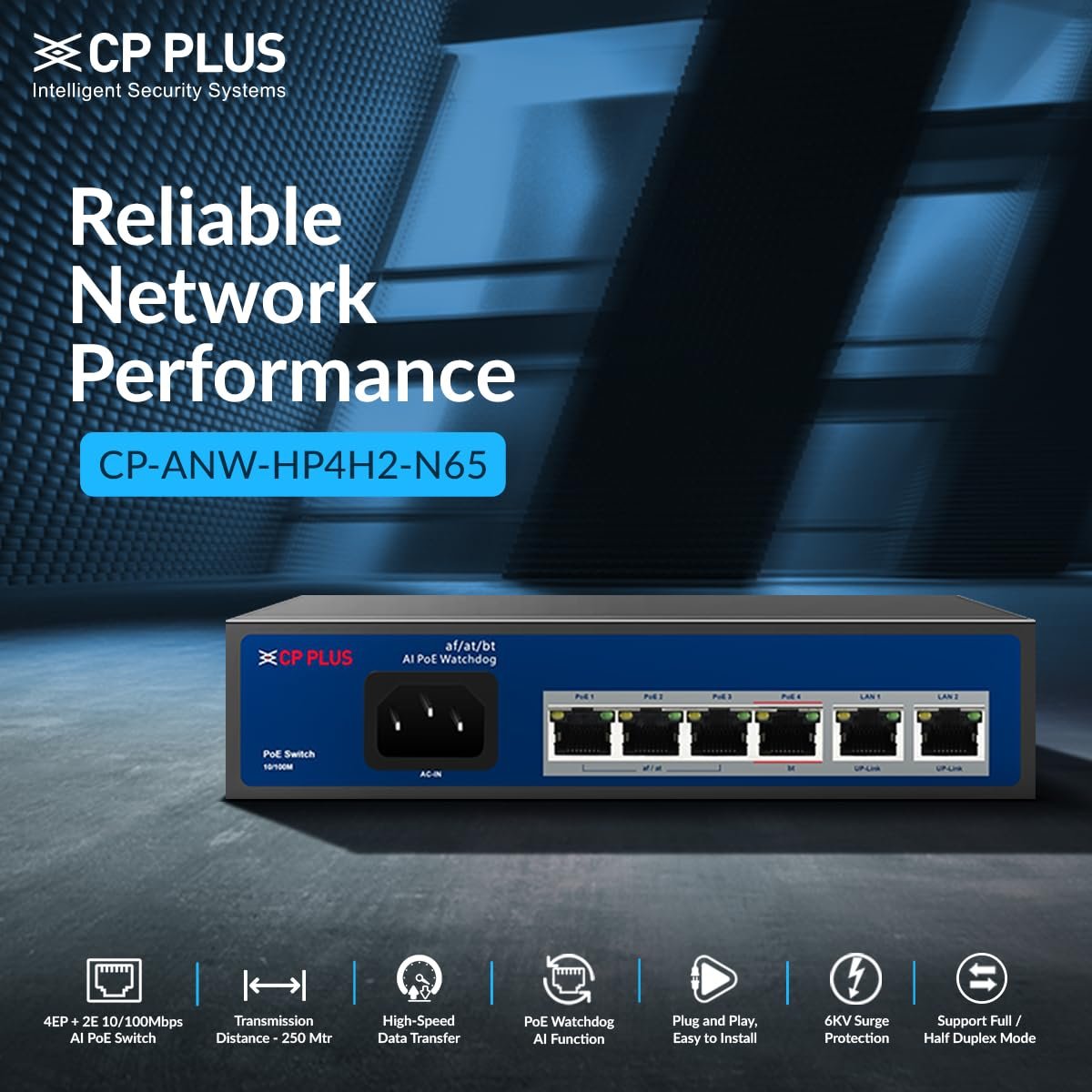

CP Plus CP-ANW-HP4H2-N65 4-Port AI PoE Switch

Description

Enhance your network infrastructure with the CP Plus CP-ANW-HP4H2-N65 4-Port AI PoE Switch, designed to deliver both power and data over a single CAT.5 cable. This switch supports IEEE802.3af/at/bt standards, providing a total power budget of 65W, with a maximum output of 60 W per port, accommodating high-power devices like PTZ cameras and wireless access points.

Equipped with PoE Watchdog AI Function, the switch can automatically detect and restart unresponsive PoE devices, ensuring uninterrupted network performance. Its FE ports support long-distance transmission up to 250 meters, reducing the need for additional networking equipment.

Safety features include 6KV lightning protection, 8KV surge protection, and safeguards against reverse connections, overcurrent, overvoltage, overtemperature, and short circuits. The switch operates within a wide temperature range (-30°C to 60°C) and humidity levels (10% to 90% non-condensing), making it suitable for various environments.

With its plug-and-play design, zero configuration is required, simplifying installation and maintenance. The compact dimensions (187mm x 139mm x 43mm) allow for flexible placement in different settings.

4EP + 2E 10/100Mbps AI PoE Switch

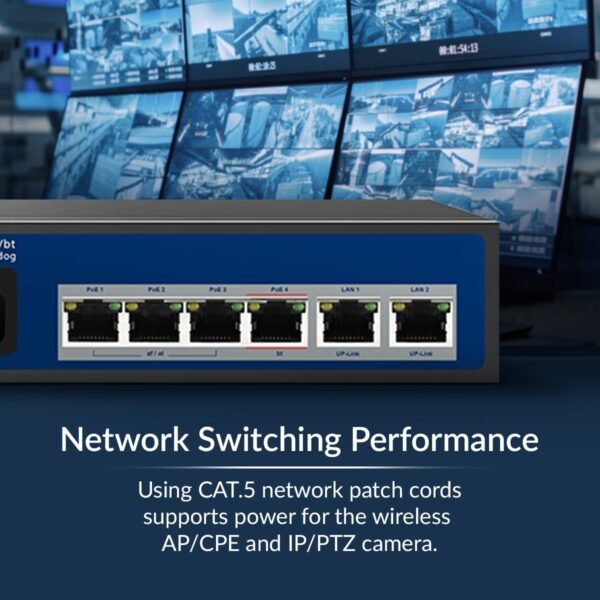

Using CAT.5 network patch cords supports power for the wireless AP/CPE and IP/PTZ camera.
Networking standard: IEEE802.3af/at/bt.

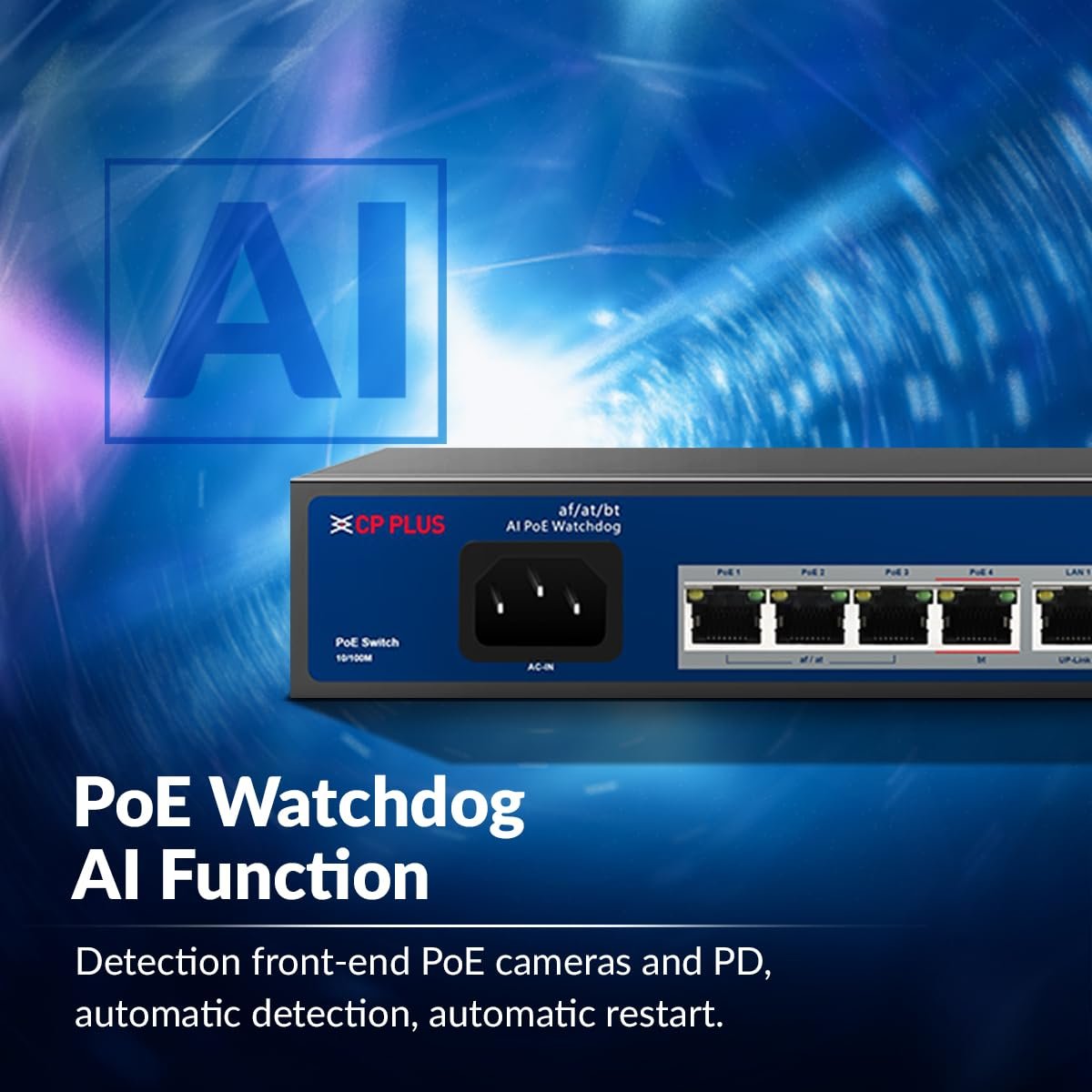

PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart

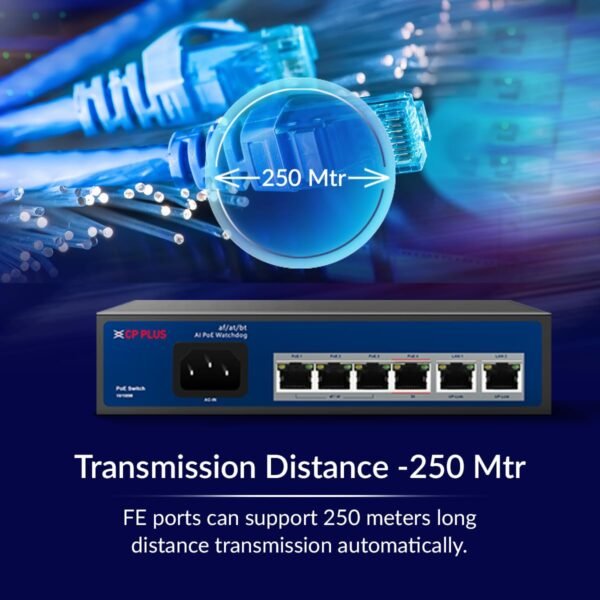

FE ports can support 250 meters long distance transmission automatically

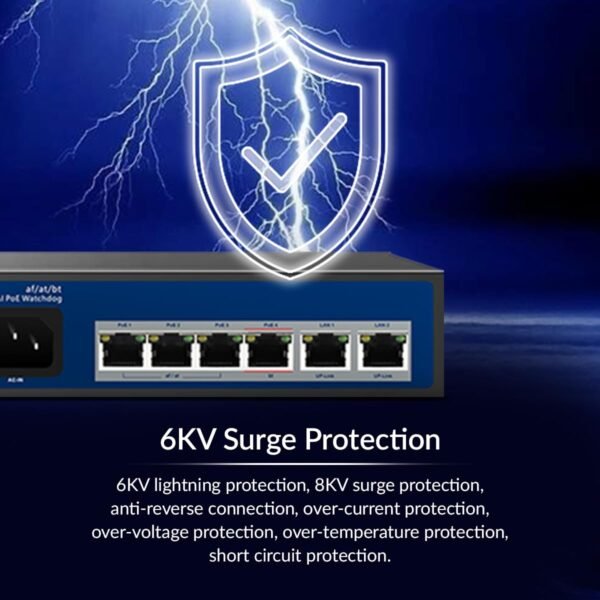

6KV lightningn, 8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, Short circuit protection
Support 60W PoE receiving power, free of power adapter & simplify power supply
The Max output power of the port is 60W, which is convenient for hi-power equipment

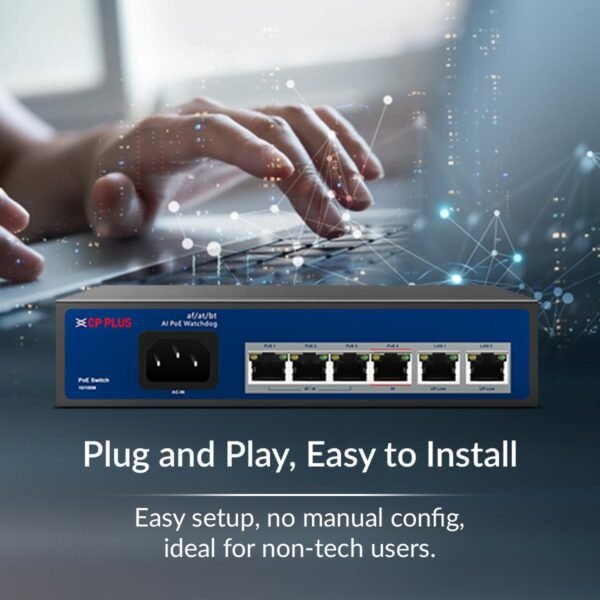

Zero configuration feature power supply is automatically supplied to the adaptive equipment

Network Port: PoE (1~3) :10/100Mbps PoE ports (RJ45) PoE (4) :10/100Mbps PoE port, BT port, Compatible uplink port (RJ45) LAN (1~2):10/100Mbps uplink port (RJ45)
Switch Capacity: Bandwidth 1.2 Gbps
PoE Standard: IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet
Transmission Distance: 100Mbps /10Mbps Adaptive MAX 250m
